Memory-Optimized Time-Lapse ERT Inversion#
This example compares the sparse lower-RAM solver path
(save_memory=True) with the standard time-lapse inversion path
(save_memory=False). Both runs use the same measurements, mesh, and
inversion parameters so runtime, process memory, and recovered resistivity
distributions can be compared directly.
sphinx_gallery_thumbnail_path = ‘auto_examples/images/Ex_TL_inversion_memory_fig_01.png’
import os
import sys
import time
import gc
import numpy as np
import matplotlib.pyplot as plt
from pygimli.physics import ert
# Setup package path for development
try:
current_dir = os.path.dirname(os.path.abspath(__file__))
except NameError:
current_dir = os.getcwd()
if (
not os.path.exists(os.path.join(current_dir, "data"))
and os.path.exists(os.path.join(current_dir, "examples", "data"))
):
current_dir = os.path.join(current_dir, "examples")
parent_dir = os.path.dirname(current_dir)
if parent_dir not in sys.path:
sys.path.append(parent_dir)
from PyHydroGeophysX.inversion.time_lapse import TimeLapseERTInversion
try:
import psutil
process = psutil.Process()
except Exception as exc:
process = None
print("psutil not available; RSS memory numbers will be skipped.", exc)
Load the time-lapse measurements and create the inversion mesh#
ert_files = [
"synthetic_data30.dat",
"synthetic_data60.dat",
"synthetic_data90.dat",
"synthetic_data120.dat",
]
generated_data_dir = os.path.join(
current_dir,
"results",
"TL_measurements",
"appres",
)
bundled_data_dir = os.path.join(
current_dir,
"data",
"TL_measurements",
"appres",
)
generated_files = [
os.path.join(generated_data_dir, filename)
for filename in ert_files
]
data_dir = (
generated_data_dir
if all(os.path.exists(path) for path in generated_files)
else bundled_data_dir
)
data_files = [
os.path.join(data_dir, filename)
for filename in ert_files
]
measurement_times = list(range(1, len(data_files) + 1))
missing_files = [
path for path in data_files
if not os.path.exists(path)
]
if missing_files:
raise FileNotFoundError(
"Missing time-lapse measurements:\n"
+ "\n".join(missing_files)
)
data = ert.load(data_files[0])
mesh = ert.ERTManager(data).createMesh(data=data, quality=34)
print(f"Data directory: {data_dir}")
print(f"Time steps: {len(data_files)}")
print(f"Measurements per step: {data.size()}")
print(f"Inversion mesh cells: {mesh.cellCount()}")
Run the memory-optimized inversion#
The first run activates the sparse solver path with save_memory=True.
print("Running save_memory=True ...")
save_params = {
**base_params,
"save_memory": True,
}
save_inversion = TimeLapseERTInversion(
data_files=data_files,
measurement_times=measurement_times,
mesh=mesh,
**save_params,
)
save_rss_before = (
process.memory_info().rss / 1e9
if process is not None
else None
)
save_start = time.time()
result_save = save_inversion.run()
save_duration = time.time() - save_start
gc.collect()
save_rss_after = (
process.memory_info().rss / 1e9
if process is not None
else None
)
stats_save = {
"save_memory": True,
"rss_before_gb": save_rss_before,
"rss_after_gb": save_rss_after,
"delta_gb": (
save_rss_after - save_rss_before
if save_rss_before is not None and save_rss_after is not None
else None
),
"duration_s": save_duration,
}
Run the standard inversion#
The second run uses the same data, mesh, and inversion settings with save_memory=False.
print("Running save_memory=False ...")
dense_params = {
**base_params,
"save_memory": False,
}
dense_inversion = TimeLapseERTInversion(
data_files=data_files,
measurement_times=measurement_times,
mesh=mesh,
**dense_params,
)
dense_rss_before = (
process.memory_info().rss / 1e9
if process is not None
else None
)
dense_start = time.time()
result_dense = dense_inversion.run()
dense_duration = time.time() - dense_start
gc.collect()
dense_rss_after = (
process.memory_info().rss / 1e9
if process is not None
else None
)
stats_dense = {
"save_memory": False,
"rss_before_gb": dense_rss_before,
"rss_after_gb": dense_rss_after,
"delta_gb": (
dense_rss_after - dense_rss_before
if dense_rss_before is not None and dense_rss_after is not None
else None
),
"duration_s": dense_duration,
}
Compare runtime and process memory#
for label, stats in [
("save_memory=True ", stats_save),
("save_memory=False", stats_dense),
]:
if stats["rss_before_gb"] is None:
memory_text = "RSS tracking unavailable"
else:
memory_text = (
f"before: {stats['rss_before_gb']:.2f} GB; "
f"after: {stats['rss_after_gb']:.2f} GB; "
f"delta: {stats['delta_gb']:.2f} GB"
)
print(
f"{label} -> {memory_text}; "
f"duration: {stats['duration_s']:.1f} s"
)

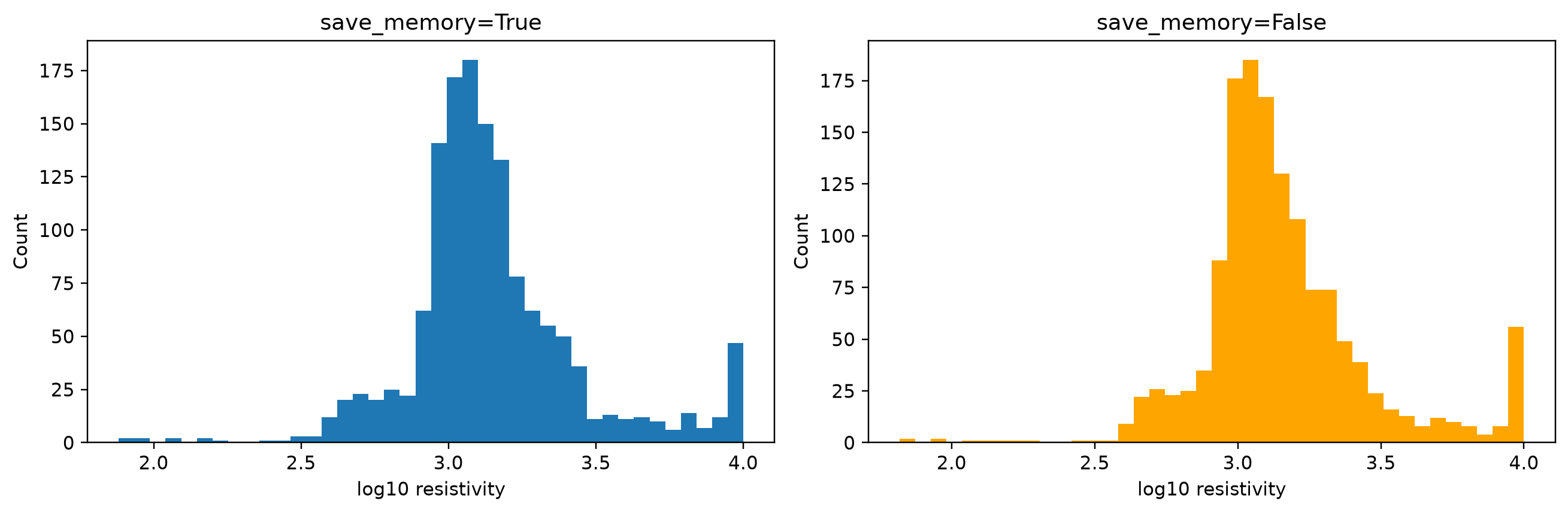

Compare the recovered resistivity distributions#
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
if result_save.final_models is not None:
axes[0].hist(
np.log10(result_save.final_models[:, 0] + 1e-6),
bins=40,
)
axes[0].set_title("save_memory=True")
axes[0].set_xlabel("log10 resistivity")
axes[0].set_ylabel("Count")
else:
axes[0].text(0.5, 0.5, "No data", ha="center")
axes[0].set_axis_off()
if result_dense.final_models is not None:
axes[1].hist(
np.log10(result_dense.final_models[:, 0] + 1e-6),
bins=40,
color="orange",
)
axes[1].set_title("save_memory=False")
axes[1].set_xlabel("log10 resistivity")
axes[1].set_ylabel("Count")
else:
axes[1].text(0.5, 0.5, "No data", ha="center")
axes[1].set_axis_off()
plt.tight_layout()
plt.show()
The histograms provide a quick consistency check for the recovered baseline resistivity distributions from the two solver paths.
