Ex. Structure-Constrained Resistivity Inversion

This example demonstrates how to incorporate structural information from seismic velocity models into ERT inversion for improved subsurface imaging.

The workflow includes: 1. Loading seismic travel time data and performing velocity inversion 2. Extracting velocity interfaces at specified thresholds 3. Creating ERT meshes with geological layer boundaries 4. Structure-constrained ERT inversion using velocity-derived interfaces 5. Comparison with unconstrained inversion results

Structure-constrained inversion significantly improves the accuracy of resistivity models by incorporating a priori geological information, leading to more reliable hydrological interpretations.

import matplotlib.pyplot as plt
import numpy as np
import pygimli as pg
from pygimli.physics import ert
import pygimli.physics.traveltime as tt
import os
import sys
import matplotlib.pylab as pylab

# Setup package path for development
try:
    # For regular Python scripts
    current_dir = os.path.dirname(os.path.abspath(__file__))
except NameError:
    # For Jupyter notebooks
    current_dir = os.getcwd()

# Add the parent directory to Python path
parent_dir = os.path.dirname(current_dir)
if parent_dir not in sys.path:
    sys.path.append(parent_dir)

# Import PyHydroGeophysX modules
from PyHydroGeophysX.inversion.time_lapse import TimeLapseERTInversion
from PyHydroGeophysX.core.mesh_utils import MeshCreator,add_velocity_interface,createTriangles,extract_velocity_interface
# Set up matplotlib parameters
params = {'legend.fontsize': 15,
         'axes.labelsize': 14,
         'axes.titlesize':14,
         'xtick.labelsize':14,
         'ytick.labelsize':14}
pylab.rcParams.update(params)
plt.rcParams["font.family"] = "Arial"

### 1. load ERT and SRT data

load seismic data

ttData = tt.load("../examples/results/workflow_example/synthetic_seismic_data.dat")
# load ERT data
ertData = ert.load("../examples/results/TL_measurements/appres/synthetic_data30.dat")

### 2. Set up inversion domain

using ERT data to create a mesh to take care of the boundary

paraBoundary = 0.1

ert1 = ert.ERTManager(ertData)
grid = ert1.createMesh(data=ertData,quality = 31,paraDX=0.5, paraMaxCellSize=2, boundaryMaxCellSize=3000,smooth=[2, 2],
                       paraBoundary = paraBoundary, paraDepth = 30.0)
ert1.setMesh(grid)
mesh = ert1.fop.paraDomain
mesh.setCellMarkers(np.ones((mesh.cellCount()))*2)

### 3. Invert the seismic travel time data first

# travel time inversion

TT = pg.physics.traveltime.TravelTimeManager()
TT.setMesh(mesh)
TT.invert(ttData, lam=50,
          zWeight=0.2,vTop=500, vBottom=5000,
          verbose=1, limits=[100., 6000.])

ax, cbar = TT.showResult(cMap='jet',coverage=TT.standardizedCoverage(),cMin=500,cMax=5000)

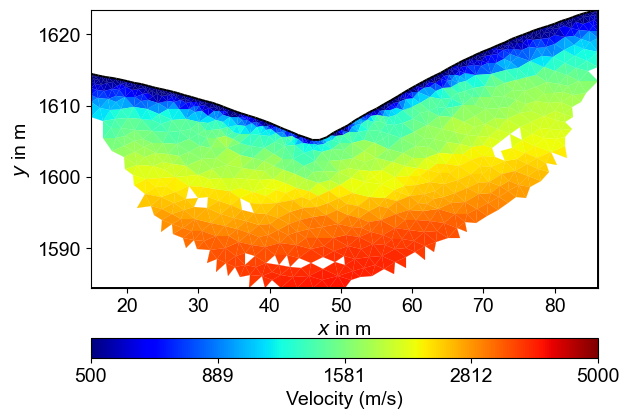

Seismic Velocity Inversion Results

%% [markdown] ### 4. Get the structure interface

velocity_data = TT.model.array()
# Call the function with velocity data
smooth_x, smooth_z = extract_velocity_interface(mesh, velocity_data, threshold=1200,interval = 5)

fig, ax1 = plt.subplots(1, 1, figsize=(5, 3))

# Original data
pg.show(mesh, velocity_data, ax=ax1, cMap='viridis', colorBar=True)
ax1.set_title('Original Velocity Data')
ax1.plot(smooth_x, smooth_z)

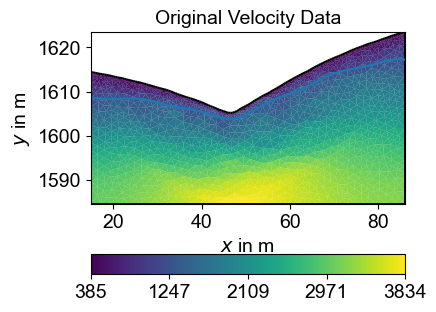

Velocity Interface Extraction

This interface will be incorporated into the ERT mesh to constrain the inversion and preserve sharp geological boundaries.

%% [markdown] ### 4. Put structure interface into mesh for inversion

markers, mesh_with_interface = add_velocity_interface(ertData, smooth_x, smooth_z)
mesh_with_interface

# chceck the mesh with interface

fig, ax = plt.subplots(figsize=(6, 4))
pg.show(mesh_with_interface, markers, ax=ax, cMap='jet', colorBar=True)
plt.title('Mesh with Velocity Interface')
plt.show()
mesh_with_interface

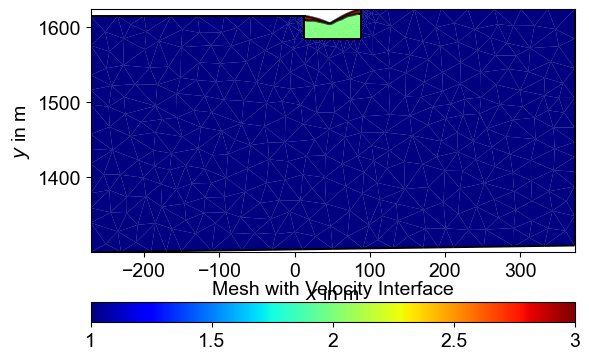

Mesh with Structural Constraints

The mesh refinement along the structural boundary ensures accurate representation of the geological interface while maintaining appropriate resolution for ERT measurements. This structured mesh allows the inversion to preserve sharp resistivity contrasts at the known geological boundary while applying smoothing constraints within each geological unit.

%% [markdown] ### 5. Inversion with the updated mesh

mgrConstrained = ert.ERTManager()
mgrConstrained.invert(data=ertData, verbose=True, lam=10, mesh=mesh_with_interface,limits=[1., 10000.])

from palettable.lightbartlein.diverging import BlueDarkRed18_18
fixed_cmap = BlueDarkRed18_18.mpl_colormap

res_cov = mgrConstrained.coverage()[mgrConstrained.paraDomain.cellMarkers()]>-1.0

mgrConstrained.showResult(xlabel="Distance (m)", ylabel="Elevation (m)",coverage = res_cov,cMap=fixed_cmap)

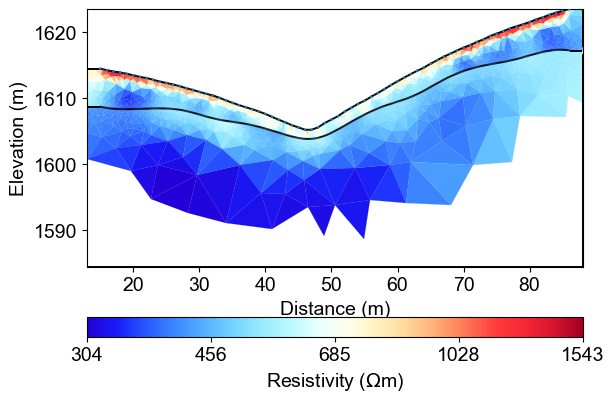

Structure-Constrained ERT Inversion Results

The structure-constrained ERT inversion produces a resistivity model that honors both the electrical measurements and the geological structure derived from seismic data

### 6. Save the mesh

mesh_with_interface.save("results/Structure_WC/mesh_with_interface.bms")
